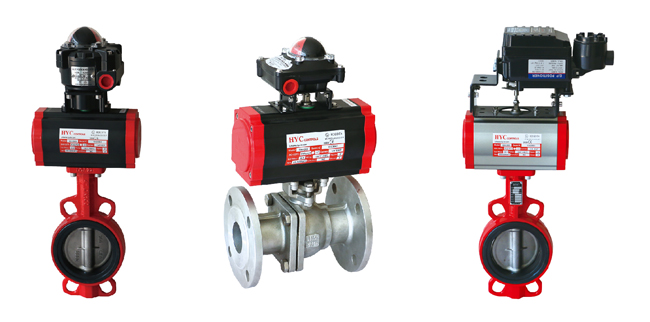

HYC氣動執行器

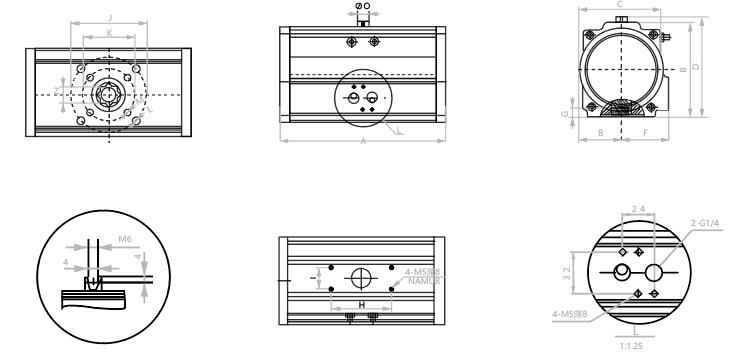

型號 | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | A120 | A180 | Airconnection |
QH052 | 143 | 72 | 55 | 92 | 30 | 41 | 14 | 80 | 30 | F05?50 | F03?36 | M6x8 | M5X8 | 11 | ?40 | 158 | 200 | G1/8” |
QH063 | 190 | 88 | 69 | 108 | 35 | 45 | 18 | 80 | 30 | F07?70 | F05?50 | M8X13 | M6X10 | 14 | ?40 | 184 | 233 | G1/4” |
QH075 | 207 | 99.5 | 100.5 | 119.5 | 38.5 | 52.5 | 20.5 | 80 | 30 | F07?70 | F05?50 | M8X10 | M6x8 | 14 | ?40 | 103 | 243 | G1/4” |
QH083 | 213 | 109 | 88 | 129 | 46 | 52.5 | 21 | 80 | 30 | F07?70 | F05?50 | M8X13 | M6x10 | 17 | ?40 | 221 | 280 | G1/4” |
QH092 | 258 | 117 | 98.5 | 137 | 50 | 61 | 21 | 80 | 30 | F07?70 | F05?50 | M8X12 | M6x10 | 17 | ?40 | 280 | 274 | G1/4” |
QH105 | 267 | 133 | 109 | 153 | 57 | 64 | 26 | 80 | 30 | F10?102 | F07?70 | M10X13 | M8X10 | 22 | ?40 | 304 | 388 | G1/4” |
QH125 | 340 | 155 | 120.5 | 175 | 67.5 | 70 | 27.5 | 80 | 30 | F10?102 | F07?70 | M10X16 | M8x13 | 22 | ?65 | 365 | 470 | G1/4” |
QH140 | 414 | 171.5 | 132 | 191.5 | 75 | 76 | 32 | 80 | 30 | F12?125 | F10?102 | M12X20 | M10x15 | 27 | ?65 | 442 | 568 | G1/4” |
HYC雙作用執行器輸出力矩
型號 | 輸入氣源壓力（單位：bar） | ||||||
2 | 3 | 4 | 5 | 6 | 7 | 8 | |
QH 032DA | 2.78 | 4.20 | 6.00 | 7.50 | 9.00 | 10.00 | 11.5 |
QH 052DA | 8.32 | 12.48 | 16.64 | 20.8 | 24.96 | 29.12 | 33.28 |
QH 063DA | 14.64 | 21.96 | 29.28 | 36.6 | 43.92 | 51.24 | 58.76 |
QH 075DA | 23.5 | 35.3 | 47 | 58.5 | 70.5 | 82.3 | 94 |
QH 083DA | 29.7 | 44.5 | 59.4 | 74.2 | 89.1 | 103.9 | 118.9 |
QH 092DA | 45.5 | 68.2 | 91.1 | 113.7 | 136.4 | 159.2 | 1189 |
QH 105DA | 67.88 | 101.82 | 136.76 | 169.7 | 203.64 | 237.58 | 371.52 |
QH 125DA | 116.6 | 174.9 | 233.2 | 291.5 | 349.8 | 408.1 | 466.4 |
QH 140DA | 175.48 | 263.22 | 350.96 | 438.7 | 526.44 | 614.18 | 701.92 |
QH 160DA | 267.4 | 401.1 | 534.8 | 668.5 | 802.2 | 935.9 | 1069.6 |
QH 190DA | 430.96 | 646.44 | 861.9 | 1077.4 | 1292.9 | 1508.4 | 1723.8 |
QH 210DA | 592.2 | 888.4 | 1184.5 | 1480.6 | 1776.7 | 2072.8 | 2369 |
QH 240DA | 928.3 | 1392.5 | 1156.6 | 2320.8 | 2785 | 3249.1 | 3713.3 |
HYC單作用執行器輸出力矩
氣源克服彈簧輸出力矩 | 彈簧輸出力矩 | ||||||||||||
氣源壓力 | 3 | 4 | 5 | 6 | 7 | ||||||||
型號 | 彈簧數量 | 0° | 90° | 0° | 90° | 0° | 90° | 0° | 90° | 0° | 90° | 0° | 90° |
起點 | 終點 | 起點 | 終點 | 起點 | 終點 | 起點 | 終點 | 起點 | 終點 | 起點 | 終點 | ||
QH052SA | 5 | 8.48 | 6.28 | 12.64 | 10.44 |
|
|
|
|
|
| 4 | 6.2 |
6 | 7.68 | 4.98 | 11.84 | 9.14 |
|
|
|
|
|
| 4.8 | 7.5 | |
7 | 6.98 |
| 11.14 | 7.94 |
|
|
|
|
|
| 5.5 | 8.7 | |
8 |
| 3.78 | 10.34 | 6.74 | 14.5 | 10.9 |
|
|
|
| 6.3 | 9.9 | |
9 |
|
| 9.54 | 5.44 | 13.7 | 9.6 |
|
|
|
| 7.1 | 11.2 | |
10 |
|
| 8.74 | 4.24 | 12.9 | 8.4 | 17.6 | 12.56 |
|
| 7.9 | 12.4 | |
11 |
|
|
|
| 12.1 | 7.1 | 16.26 | 11.26 | 20.42 | 15.42 | 8.7 | 13.7 | |
12 |
|
|
|
| 11.3 | 5.9 | 15.46 | 10.06 | 19.62 | 14.22 | 9.5 | 14.9 | |
QH063SA | 5 | 15 | 11.2 | 22.3 | 18.5 | 29.6 | 25.8 |
|
|
|
| 7 | 10.8 |
6 | 13.5 | 9 | 20.8 | 16.3 | 28.1 | 23.7 |
|
|
|
| 8.5 | 12.95 | |
7 | 12 | 6.9 | 19.4 | 14.2 | 26.7 | 21.5 |
|
|
|
| 9.9 | 15.1 | |
8 |
|
| 18 | 12 | 25.3 | 19.3 | 32.6 | 26.6 |
|
| 11.3 | 17.3 | |
9 |
|
| 16.5 | 9.9 | 23.9 | 17.2 | 31.2 | 24.52 |
|
| 12.7 | 19.4 | |
10 |
|
| 15.3 | 7.7 | 22.6 | 15 | 29.9 | 22.3 | 37.2 | 29.6 | 14 | 21.6 | |
11 |
|
| 13.8 | 5.6 | 21.1 | 12.9 | 28.4 | 20.2 | 35.7 | 27.5 | 15.5 | 23.7 | |
12 |
|
|
|
| 19.7 | 10.7 | 27 | 18 | 34.3 | 25.3 | 16.9 | 25.9 | |
QH075SA | 5 | 23.4 | 17.8 | 35.1 | 29.5 |
|
|
|
|
|
| 11.9 | 17.5 |
6 | 21.1 | 14.3 | 32.8 | 26 |
|
|
|
|
|
| 14.2 | 21 | |
7 | 18.7 | 10.8 | 30.4 | 22.5 |
|
|
|
|
|
| 16.6 | 24.5 | |
8 |
|
| 28 | 19 | 39.8 | 30.8 |
|
|
|
| 19 | 27 | |
9 |
|
| 25.7 | 15.5 | 37.5 | 27.3 |
|
|
|
| 21.3 | 31.5 | |
10 |
|
| 23.3 | 12 | 35.1 | 23.8 | 46.8 | 35.5 | 58.6 | 47.3 | 23.7 | 35 | |
11 |
|
|
|
| 32.7 | 20.3 | 44.4 | 32 | 56.2 | 43.8 | 26.1 | 38.5 | |
12 |
|
|
|
| 30.4 | 16.8 | 42.1 | 28.5 | 53.9 | 40.3 | 28.4 | 42 | |
QH083SA | 5 | 30.9 | 23.8 | 46.1 | 38.9 |
|
|
|
|
|
| 14.5 | 21.7 |
6 | 28.1 | 19.5 | 43.3 | 34.6 |
|
|
|
|
|
| 17.39 | 26 | |
7 | 25.2 | 15.1 | 40.3 | 30.2 |
|
|
|
|
|
| 20.3 | 30.4 | |
8 |
|
| 37.4 | 25.9 | 52.6 | 41.1 |
|
|
|
| 23.2 | 34.7 | |
9 |
|
| 34.5 | 21.5 | 49.7 | 36.7 |
|
|
|
| 26.1 | 39.1 | |
10 |
|
| 36.1 | 17.2 | 46.8 | 32.4 | 62 | 47.6 | 77.1 | 62.7 | 29 | 43.4 | |
11 |
|
|
|
| 43.9 | 28.1 | 59.1 | 43.3 | 74.2 | 58.4 | 31.9 | 47.7 | |
12 |
|
|
|
| 41 | 23.7 | 56.2 | 38.8 | 71.3 | 54 | 34.78 | 52.08 | |
QH0925A | 5 | 50.28 | 37.78 | 75.54 | 63.03 |
|
|
|
|
|
| 25.5 | 38 |
6 | 45.18 | 30.18 | 70.44 | 55.44 |
|
|
|
|
|
| 30.6 | 45.6 | |
7 | 40.08 | 22.58 | 65.35 | 47.84 |
|
|
|
|
|
| 35.7 | 53.2 | |
8 |
|
| 60.24 | 40.24 | 85.5 | 65.5 |
|
|
|
| 40.8 | 60.8 | |
9 |
|
| 55.14 | 32.69 | 80.4 | 57.9 |
|
|
|
| 45.9 | 68.4 | |
10 |
|
| 50.04 | 25.04 | 75.3 | 50.3 | 100.56 | 75.56 | 125.82 | 100.82 | 51 | 76 | |
11 |
|
|
|
| 70.2 | 42.7 | 95.46 | 67.96 | 12.72 | 93.22 | 26.1 | 83.6 | |
12 |
|
|
|
| 65.1 | 35.1 | 90.36 | 60.36 | 115.6 | 85.6 | 61.2 | 91.2 | |
QH105SA | 5 | 68.6 | 52 | 103.6 | 87 |
|
|
|
|
|
| 33.2 | 49.8 |
6 | 61.9 | 42 | 96.9 | 77 |
|
|
|
|
|
| 39.9 | 59.8 | |
7 | 55.3 | 32.1 | 90.3 | 67.1 |
|
|
|
|
|
| 46.5 | 69.7 | |
8 |
|
| 83.7 | 57.1 | 116.6 | 90 |
|
|
|
| 53.1 | 79.7 | |
9 |
|
| 77 | 47.1 | 109.9 | 80.3 |
|
|
|
| 59.8 | 89.4 | |
10 |
|
| 70.4 | 37.2 | 103.3 | 70.1 | 137.3 | 104 | 171.2 | 138 | 66.4 | 99.6 | |
11 |
|
|
|
| 96.7 | 60.1 | 130.6 | 94 | 164.6 | 128 | 73 | 109.6 | |
12 |
|
|
|
| 90 | 50.2 | 123.9 | 64.1 | 157.9 | 118.1 | 79.7 | 119.5 | |
QH125SA | 5 | 115.5 | 88 | 173.8 | 146.3 |
|
|
|
|
|
| 59.4 | 86.9 |
6 | 103.6 | 70.6 | 161.9 | 128.9 |
|
|
|
|
|
| 71.3 | 104.3 | |
7 | 91.8 | 53.5 | 150.1 | 111.6 |
|
|
|
|
|
| 83.1 | 121.6 | |
8 |
|
| 138.2 | 94.2 | 196.5 | 152.5 |
|
|
|
| 95 | 139 | |
9 |
|
| 126.3 | 76.8 | 184.6 | 135.1 |
|
|
|
| 106.9 | 156.4 | |
10 |
|
| 114.4 | 49.4 | 172.7 | 117.7 | 231 | 176 |
|
| 118.8 | 173.8 | |
11 |
|
|
|
| 160.9 | 100.4 | 219.2 | 158.7 | 277.5 | 217 | 130.6 | 191.1 | |
12 |
|
|
|
| 149 | 83 | 207.3 | 141.3 | 265.6 | 199.6 | 142.5 | 208.5 | |
QH140SA | 5 | 174.7 | 131.2 | 262.5 | 219 |
|
|
|
|
|
| 88.5 | 132 |
6 | 157 | 104.8 | 244.8 | 192.6 |
|
|
|
|
|
| 106.2 | 158.4 | |
7 | 133.9 | 78.4 | 227.1 | 166.2 |
|
|
|
|
|
| 123.9 | 184.8 | |
8 |
|
| 209.4 | 139.8 | 297.1 | 227.5 |
|
|
|
| 141.6 | 211.2 | |
9 |
|
| 191.7 | 113.4 | 279.4 | 201.1 |
|
|
|
| 159.3 | 237.6 | |
10 |
|
| 174 | 87 | 261.7 | 174.7 | 349.4 | 262.4 | 437.8 | 350.1 | 177 | 264 | |
11 |
|
|
|
| 244 | 148.3 | 331.7 | 236 | 419.5 | 323.8 | 194.7 | 290.4 | |
12 |
|
|
|
| 226.3 | 121.9 | 314 | 209.6 | 401.8 | 297.4 | 212.4 | 316.8 | |
QH160SA | 5 | 264.6 | 197.1 | 398.3 | 330.8 |
|
|
|
|
|
| 136.5 | 204 |
6 | 237.3 | 156.2 | 371 | 289.9 |
|
|
|
|
|
| 163.8 | 244.9 | |
7 | 210 | 115.4 | 343.7 | 249.1 |
|
|
|
|
|
| 191.1 | 285.7 | |
8 | 182.7 | 74.6 | 316.4 | 208.3 | 450.1 | 341.9 |
|
|
|
| 218.4 | 326.5 | |
9 |
|
| 289.1 | 167.5 | 422.8 | 301.2 |
|
|
|
| 245.7 | 367.3 | |
10 |
|
| 261.8 | 126.7 | 395.5 | 260.4 | 529.2 | 394.1 |
|
| 273 | 408.1 | |
11 |
|
|
|
| 368.2 | 219.6 | 501.9 | 523.3 | 635.6 | 487 | 300.3 | 488.9 | |
12 |
|
|
|
| 340.9 | 178.8 | 474.6 | 312.5 | 608.3 | 446.2 | 327.6 | 489.7 | |
QH190SA | 5 | 429 | 320.4 | 644.5 | 535.9 |
|
|
|
|
|
| 217.4 | 326 |
6 | 385.5 | 255.5 | 601 | 470.7 |
|
|
|
|
|
| 260.9 | 391.2 | |
7 | 342 | 190 | 557.5 | 405.5 |
|
|
|
|
|
| 304.4 | 456.4 | |
8 |
|
| 514 | 340.3 | 729.5 | 555.8 |
|
|
|
| 347.9 | 521.6 | |
9 |
|
| 470.6 | 275.1 | 686.1 | 490.6 |
|
|
|
| 391.3 | 586.8 | |
10 |
|
| 427.1 | 209.9 | 642.6 | 425.4 | 858.1 | 640.9 | 1073.6 | 856.4 | 434.8 | 652 | |
11 |
|
|
|
| 599.1 | 360.2 | 814.6 | 575.7 | 1030.1 | 791.2 | 478.3 | 717.2 | |
12 |
|
|
|
| 555.6 | 295 | 771.1 | 510.5 | 986.6 | 726 | 521.3 | 782.4 | |
工作原理（標準動作）

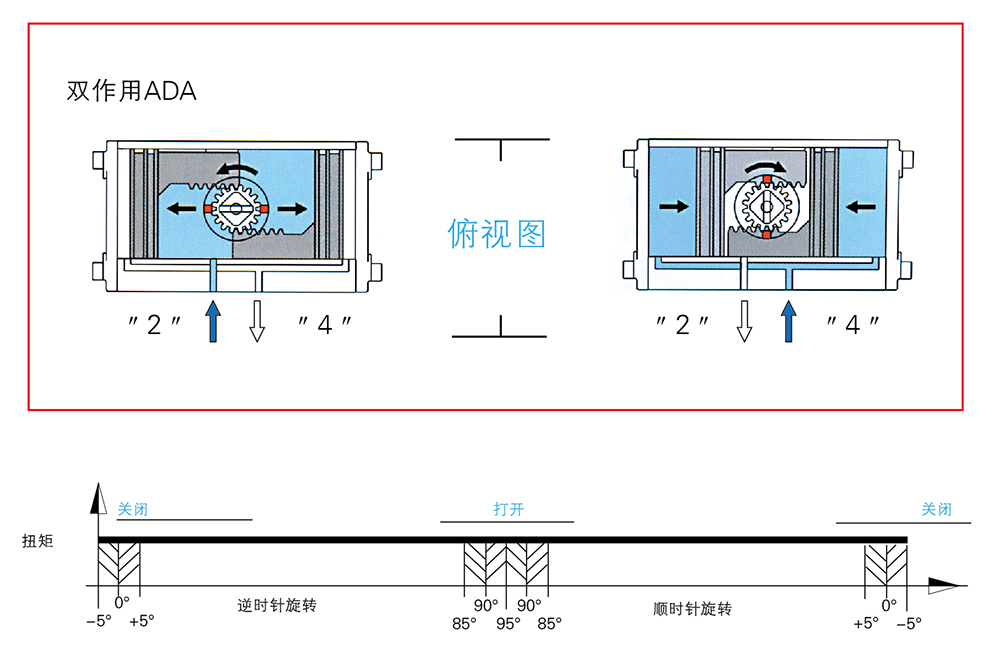

上面的示意圖表明，雙動作執行機構的扭矩值在整個行程中始終保持恒定。用戶可根據其具體要求，參考以下內容選定合適的執行機構型號:
1.明確所操作閥門的較大扭矩值；
2.扭矩值加大25％一50％設定系數(具體視閥門類型及工藝條件)；
3.根據提供的扭矩值參閱扭矩表及相應的氣壓值．得到的扭矩值應等于或是超出所提供的扭矩值；
4.扭矩值被確定下來后，水平移動至“型號”欄，找到所需的執行機構型號即可。

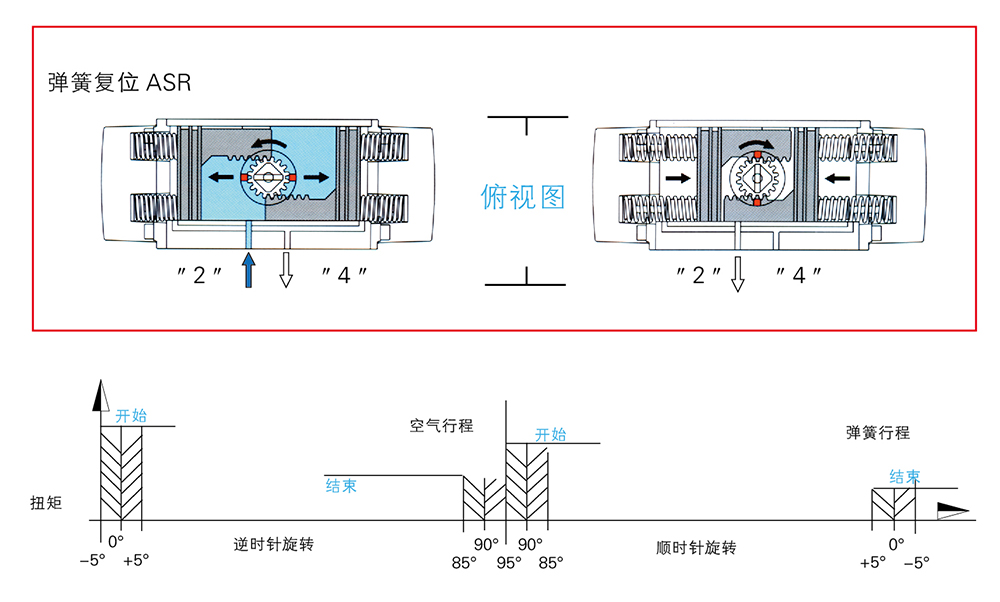

上面的示意圖，彈簧復位執行機構的扭矩不是恒定不變的而是逐漸降低的。主要原因在于彈簧在空氣行程階段因活塞運動而被壓縮，同時積累在運動轉換過程中以不斷遞減的方式獲得的能量。執行機構扭矩按以下四種基本值定義；
空氣行程：開始:彈簧釋放狀態下的執行機構扭矩 結束:彈簧壓縮狀態下的執行機構扭矩
彈簧行程：開始:彈簧壓縮時扭矩 結束:彈簧釋放狀態時扭矩
用戶可根據其具體要求，參考以下內容選定合適的執行機構型號：
1.明確所操作閥門的較大扭矩值；
2.扭矩值加大25％一50％設定安全系數(具體視閥門類型及工藝條件)；
3.根據提供的扭矩值，參閱扭矩表及相應的氣壓值。得到的扭矩值應等于或超出所提供的扭矩值，另外，要將空氣行程中結束和彈簧行程中結束問的最小值考慮在內；
4.扭矩值被確定下來后水平移動至“型號”欄，找到所需的執行機構型號即可。
